TRIMLINE
Mobility Easy Access Threshold Door Sill
Suitable for inward and outward opening doors
04SR004
-

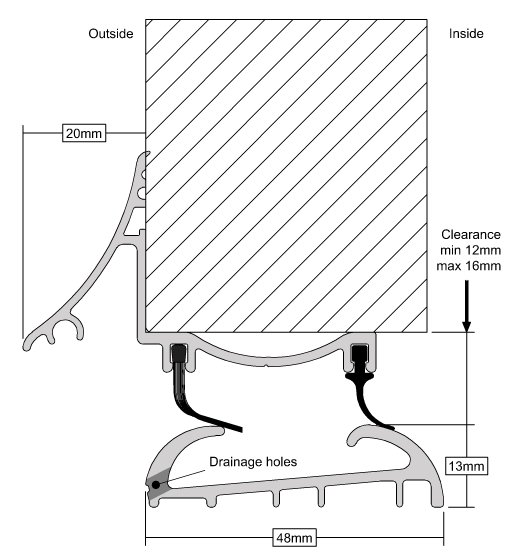

- For use where the beneath door gap is smaller than 29mm
- Seals gaps 25mm-29mm
- Pre-drilled drainage and fixing holes
- Designed to fit onto a subsill or directly onto a threshold
- Excellent fitting tolerances up to 7mm
- Curved upstands front and rear facilitate access for wheelchairs and prams
- Nitrile draught seal fitted to rear, polypropylene brush strip fitted to front
- Top section supplied with end caps- End Caps
Additional Information
Colours
-
Aluminium (Shiny) -
Gold Effect Aluminium
Sizes
- 838mm, 914mm, 1219mm, 1828mm
Spares
- 21CP106: Trimline Brush Strip
- 21CP099: Trimline Rear Rubber Seal
- SC-0564: Fixing Screws for Bottom Section
- SC-0562: Fixing Screws for Top Section
- PI-0313: Seal Retaining Pin
Optional Extras
- 22CP215: Rain Deflector Edge Covers- End Caps
- 04CP079: Bottom Section only
