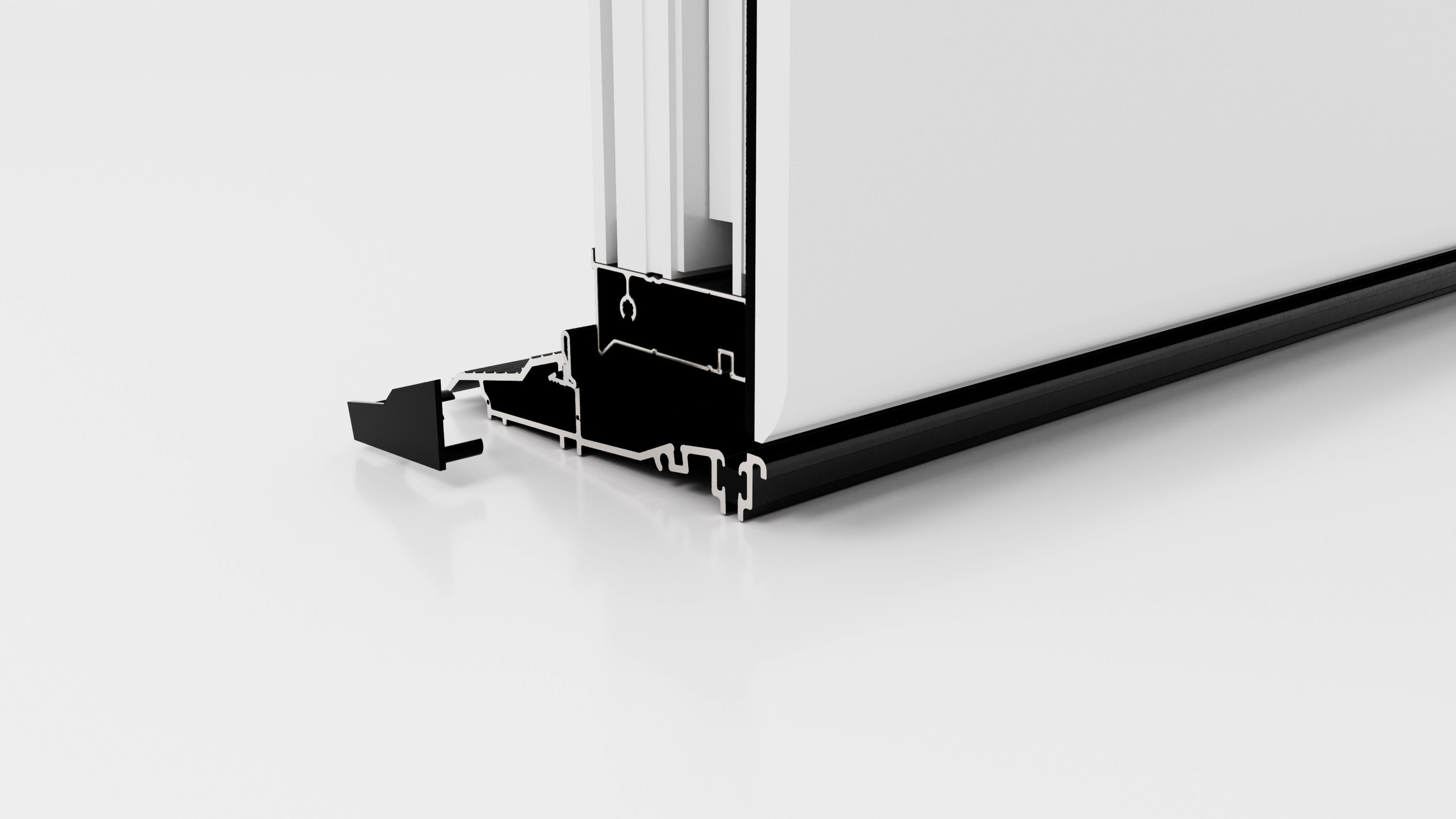

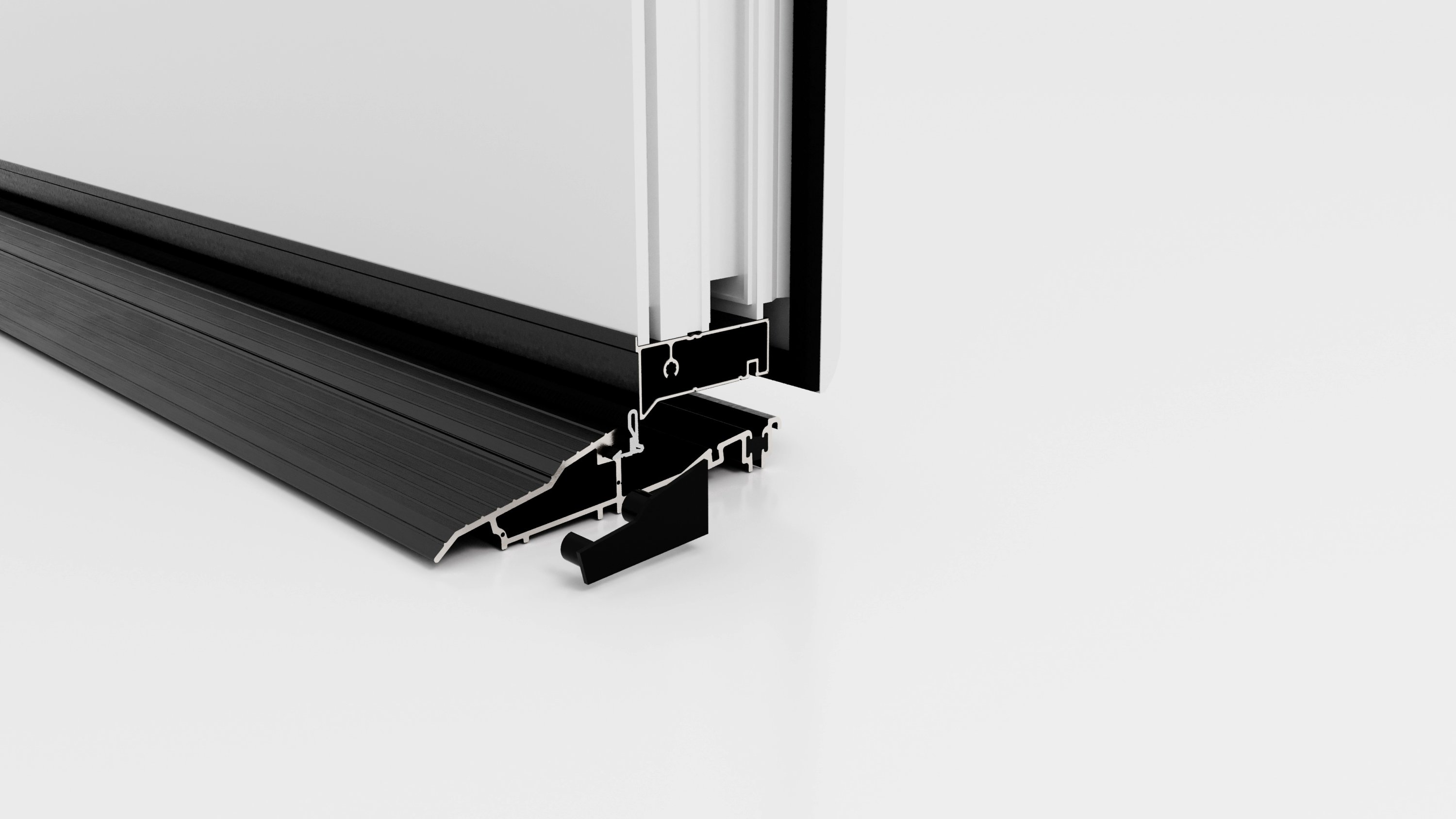

PROLINE AM3EX

Mobility Easy Access Threshold Door Sill

Suitable for inward opening doors

04CP219- with Triplex
04CP551- with Aquamac 63
04CP586- with Aquamac 21
04CP632- with Aquamac 5694
04CP556- Unfabricated
(Available in contract packaging only)

Ergonomically tested for Part M compliance- see section 0.23
Can be installed as the fourth side of the door frame or retro fitted
Seals gaps 18mm-23mm
Pre-drilled drainage holes
Thermally broken to meet thermal bridging and insulation requirements, can be used with many different frame and door materials, e.g. wood, PVCu, fibreglass, aluminium, steel and carbon fibre
Designed to fit directly onto level thresholds
Ideal for use with carpeted floors
Non-slip surface ensures a safe grip in wet conditions
Supplied with end caps to close off the ends of the front channel- End Caps
For use with a subsill see Proline AM3Ex Subsill- 04CP316 Proline AM3Ex Subsill
Optional rubber infill section that fits into the sill and allows the door frame/sidelight to be fitted on top of the sill without milling the bottom of the frame to the sill profile- 20CP159 AM3 Infill Block
Optional frame infill section that fits into the sill and allows the door frame/sidelight to be fitted on top of the sill without milling the bottom of the frame to the sill profile- 20CP148 AM3 Frame Infill
Optional infill bars available to fill the bottom sash rebate on UPVC doors- PVC Door Infills
Optional clip-in internal transition ramp also allows use with tiled and wooden floors- 04CP224 Proline Low Ramp
Adjustable locking keeps available for double doors to suit your shoot bolt position- AM3Ex Adjustable Locking Keeps
Plastic shootbolt catcher available for double doors- Locking Keep Plugs
Bespoke nylon connector blocks, which match the door frame and threshold profiles are available to avoid for the need for end milling- AM3 Frame Connectors
